Overview

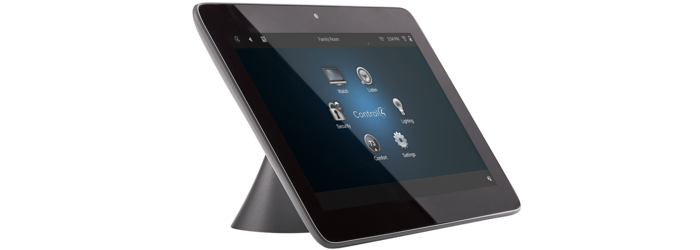

The Control4 T3 Series Tabletop Touch Screen delivers always-on, dedicated control over all the technology in your home or business. Control4 T3 Series Tabletop Touch Screen The Control4 T3 Series Tabletop Touch Screen delivers always-on, dedicated control over all the technology in your home or business. Featuring gorgeous, low-profile designs with edge-to-edge glass and stunning, high-resolution graphics, these touch screens look amazing on any wall. All models include video intercom for convenient communications from room to room or with visitors at the door. When combined with the Intercom Anywhere smartphone app and a 4Sight subscription, they can also use the intercom capabilities in Control4 touch screens to communicate with family members on their smartphones whether they are at home or out of town. Features Available in 7" and 10" models, the T3 Series Portable Touch Screen provides dedicated, elegant, and mobile control of your home. HD camera, combined with speakers and microphone, provides the best video intercom experience yet. Crisp picture with two and a half times the resolution of previous models. Extremely fast and responsive—up to 16 times faster than our previous touch screens. Easily configured as a true portable or as a tethered tabletop for flexible installation. Wired and wireless connections through Wireless-N and 10/100 Ethernet. Flexible power options with AC power supply adapter, Power over Ethernet (PoE), or internal battery. Video intercom integration with the following door stations and touch screens: Door Station (C4-DSC-EN) and DS2 Door Station (C4-DS2FM, C4-DS2FMKP, C4-DS2SM, C4-DS2SMKP), T3 Series In-Wall Touch Screens (C4-WALL7, C4-WALL10), and legacy touch screens (C4-TW7CO, C4-TSMC7). Audio intercom integration with the legacy Door Station (C4-DSC-EN) and DS2 Door Station (C4-DS2FM, C4-DS2FMKP, C4-DS2SM, C4-DS2SMKP), and the following touch screens: T3 Series In-Wall Touch Screens (C4-WALL7, C4-WALL10) and legacy touch screens (C4-TW7CO, C4-TSMC7, C4-TSWMC5, C4-TSWMC7).
Specifications
| Warranty | 2 years |
|---|---|
| Screen Description | Resolution: 1280 x 800 Capacitive touch Camera: 720p |
| Networks Supported | Ethernet or WiFi (802.11g/n [2.4GHz] Notes: (1) 802.11b is not supported for Video Intercom (2) Wireless-N is recommended for Video Intercom. The more devices Video Intercom is broadcast to, the more response time and images are degraded. |
| Battery Description | 7": 3,100 mAh Li-ion 10": 7,000 mAh Li-ion |
| Power Supply | PoE (iEEE802.3af) 100VAC - 240VAC, 50-60 Hz International power supply adapters included |
| Charging station connections | Ethernet PoE DC power |
| Mounting | Tabletop or portable |
| Operating Temperature | 32 - 104°F (0° - 40°C) |
| Storage Temperature | 32 - 104°F (0° - 40°C) |
| Dimensions (W x H x D) | 7" Touch Screen: 7.0 x 5.1 x 0.75" (178 x 130 x 19 mm); 10" Touch Screen: 9.65 x 6.77 x 0.91" (245 x 172 x 23 mm) 7" charging station: 4.17 x 3.11 x 2.21" (106 x 79 x 56 mm); 10" charging station: 4.53 x 4.02 x 2.60" (115 x 102 x 66 mm) |
| Weight | 7" Touch Screen: 0.7 lbs (0.32 kg); 10" Touch Screen: 1.35 lbs (0.60 kg) 7" charging station: 0.8 lbs (0.36 kg); 10" charging station: 1.05 lbs (0.46 kg) |
